HSS11-3/4x3/8 (HSS11.75x.375) – HSS Shapes - Round

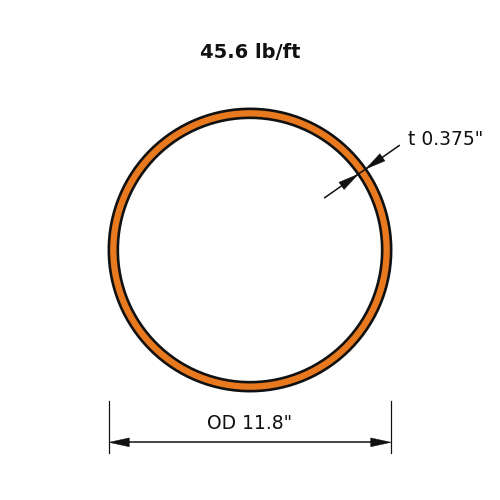

HSS11-3/4x3/8 is an 11.75 in (298 mm) diameter round hollow section with a 3/8 in (10 mm) nominal wall, weighing 45.6 lb/ft (67.9 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)45.6
Outside Diameter (in)11.75
Nominal Thickness (in)0.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)203
Zx (in³)45.3
Sx (in³)34.6
rx (in)4.03
Iy (in⁴)203
Zy (in³)45.3
Sy (in³)34.6
ry (in)4.03
J (in⁴)406
C (in³)69

Full sortable table: Section properties table for this family
