WT7x436.5 – WT Shapes

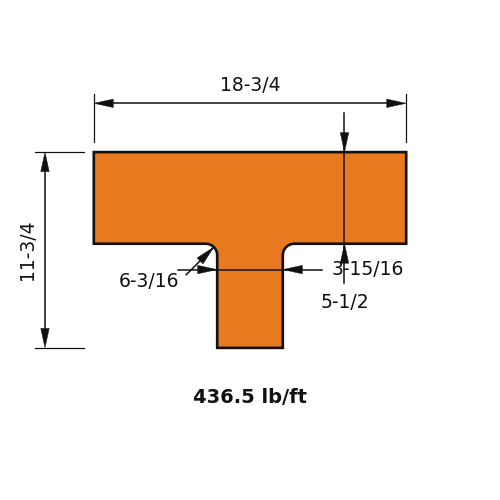

WT7x436.5 is a tee 11.8 in (300 mm) deep with an 18.8 in (478 mm) flange, weighing 436.5 lb/ft (649.6 kg/m).

WT shapes are structural tees produced by splitting a W shape lengthwise down the centre of its web, yielding a T-shaped cross-section with the flange width and thickness of the parent W shape. They're used as chords in trusses and open-web steel joists, as flanges welded to plate to build up girders and other custom sections, and anywhere a single wide bearing flange on a stem is more structurally efficient than a full I-shaped section — typically where only one face of the member needs to carry a bearing or connection load.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)436.5
Depth of Section (in)11.8
Width of Section (in)18.8
Web Thickness (in)3.94
Flange Thickness (in)5.51
Kdet Dimension (in)6.1875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1040
Zx (in³)281
Sx (in³)131
rx (in)2.84
Iy (in⁴)3080
Zy (in³)511
Sy (in³)328
ry (in)4.89
J (in⁴)1110
Cw (in⁶)8980
ro (in)5.76
H (-)0.962

Full sortable table: Section properties table for this family
