WT7x404 – WT Shapes

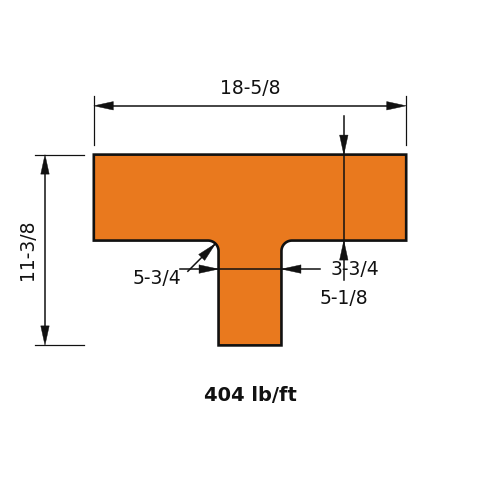

WT7x404 is a tee 11.4 in (290 mm) deep with an 18.6 in (472 mm) flange, weighing 404 lb/ft (601.2 kg/m).
WT shapes are structural tees produced by splitting a W shape lengthwise down the centre of its web, yielding a T-shaped cross-section with the flange width and thickness of the parent W shape. They're used as chords in trusses and open-web steel joists, as flanges welded to plate to build up girders and other custom sections, and anywhere a single wide bearing flange on a stem is more structurally efficient than a full I-shaped section — typically where only one face of the member needs to carry a bearing or connection load.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 404.0 |
| Depth of Section (in) | 11.4 |
| Width of Section (in) | 18.6 |
| Web Thickness (in) | 3.74 |
| Flange Thickness (in) | 5.12 |
| Kdet Dimension (in) | 5.75 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 898 |
| Zx (in³) | 249 |
| Sx (in³) | 116 |
| rx (in) | 2.75 |
| Iy (in⁴) | 2770 |
| Zy (in³) | 465 |
| Sy (in³) | 298 |
| ry (in) | 4.82 |
| J (in⁴) | 898 |
| Cw (in⁶) | 7000 |
| ro (in) | 5.67 |
| H (-) | 0.96 |
Full sortable table: Section properties table for this family
