WT22x204 – WT Shapes

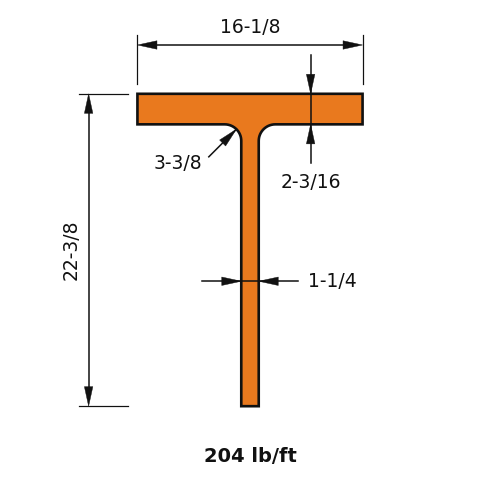

WT22x204 is a tee 22.4 in (569 mm) deep with a 16.1 in (409 mm) flange, weighing 204 lb/ft (303.6 kg/m).

WT shapes are structural tees produced by splitting a W shape lengthwise down the centre of its web, yielding a T-shaped cross-section with the flange width and thickness of the parent W shape. They're used as chords in trusses and open-web steel joists, as flanges welded to plate to build up girders and other custom sections, and anywhere a single wide bearing flange on a stem is more structurally efficient than a full I-shaped section — typically where only one face of the member needs to carry a bearing or connection load.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)204.0
Depth of Section (in)22.4
Width of Section (in)16.1
Web Thickness (in)1.22
Flange Thickness (in)2.17
Kdet Dimension (in)3.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)2670
Zx (in³)286
Sx (in³)160
rx (in)6.68
Iy (in⁴)758
Zy (in³)148
Sy (in³)94.2
ry (in)3.56
J (in⁴)66.9
Cw (in⁶)785
ro (in)8.87
H (-)0.728

Full sortable table: Section properties table for this family
