WT22x184 – WT Shapes

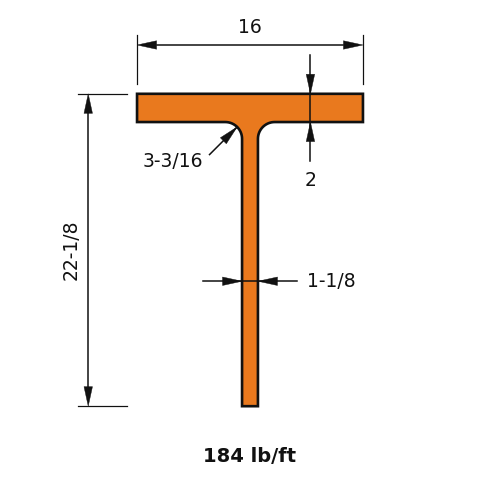

WT22x184 is a tee 22.2 in (564 mm) deep with a 16 in (406 mm) flange, weighing 184 lb/ft (273.8 kg/m).

WT shapes are structural tees produced by splitting a W shape lengthwise down the centre of its web, yielding a T-shaped cross-section with the flange width and thickness of the parent W shape. They're used as chords in trusses and open-web steel joists, as flanges welded to plate to build up girders and other custom sections, and anywhere a single wide bearing flange on a stem is more structurally efficient than a full I-shaped section — typically where only one face of the member needs to carry a bearing or connection load.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)184.0
Depth of Section (in)22.2
Width of Section (in)16.0
Web Thickness (in)1.1
Flange Thickness (in)1.97
Kdet Dimension (in)3.1875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)2380
Zx (in³)255
Sx (in³)143
rx (in)6.64
Iy (in⁴)675
Zy (in³)132
Sy (in³)84.4
ry (in)3.54
J (in⁴)49.9
Cw (in⁶)570
ro (in)8.81
H (-)0.729

Full sortable table: Section properties table for this family
