WT18x462.5 – WT Shapes

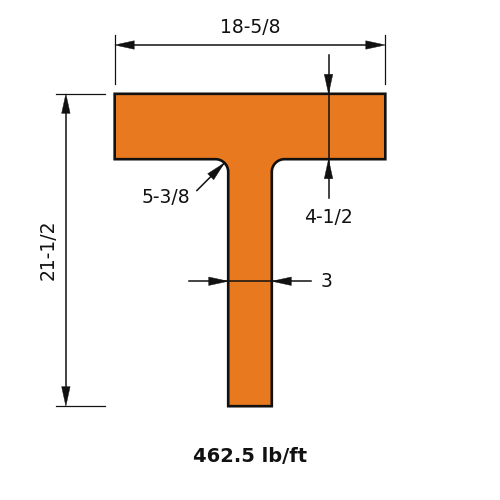

WT18x462.5 is a tee 21.6 in (549 mm) deep with an 18.6 in (472 mm) flange, weighing 462.5 lb/ft (688.3 kg/m).
WT shapes are structural tees produced by splitting a W shape lengthwise down the centre of its web, yielding a T-shaped cross-section with the flange width and thickness of the parent W shape. They're used as chords in trusses and open-web steel joists, as flanges welded to plate to build up girders and other custom sections, and anywhere a single wide bearing flange on a stem is more structurally efficient than a full I-shaped section — typically where only one face of the member needs to carry a bearing or connection load.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 462.5 |
| Depth of Section (in) | 21.6 |
| Width of Section (in) | 18.6 |
| Web Thickness (in) | 3.02 |
| Flange Thickness (in) | 4.53 |
| Kdet Dimension (in) | 5.375 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 5130 |
| Zx (in³) | 617 |
| Sx (in³) | 337 |
| rx (in) | 6.14 |
| Iy (in⁴) | 2470 |
| Zy (in³) | 431 |
| Sy (in³) | 266 |
| ry (in) | 4.26 |
| J (in⁴) | 707 |
| Cw (in⁶) | 9680 |
| ro (in) | 8.52 |
| H (-) | 0.769 |
Full sortable table: Section properties table for this family
