WT18x426.5 – WT Shapes

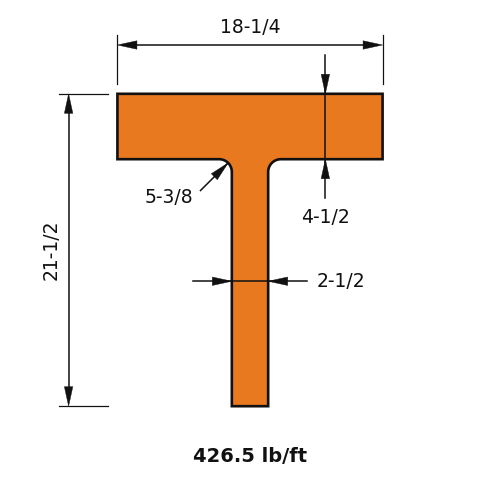

WT18x426.5 is a tee 21.6 in (549 mm) deep with an 18.2 in (462 mm) flange, weighing 426.5 lb/ft (634.7 kg/m).
WT shapes are structural tees produced by splitting a W shape lengthwise down the centre of its web, yielding a T-shaped cross-section with the flange width and thickness of the parent W shape. They're used as chords in trusses and open-web steel joists, as flanges welded to plate to build up girders and other custom sections, and anywhere a single wide bearing flange on a stem is more structurally efficient than a full I-shaped section — typically where only one face of the member needs to carry a bearing or connection load.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 426.5 |
| Depth of Section (in) | 21.6 |
| Width of Section (in) | 18.2 |
| Web Thickness (in) | 2.52 |
| Flange Thickness (in) | 4.53 |
| Kdet Dimension (in) | 5.375 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 4480 |
| Zx (in³) | 533 |
| Sx (in³) | 286 |
| rx (in) | 5.96 |
| Iy (in⁴) | 2300 |
| Zy (in³) | 403 |
| Sy (in³) | 253 |
| ry (in) | 4.27 |
| J (in⁴) | 615 |
| Cw (in⁶) | 7100 |
| ro (in) | 8.21 |
| H (-) | 0.799 |
Full sortable table: Section properties table for this family
