W8x40 – W Shapes - American wide flange beams

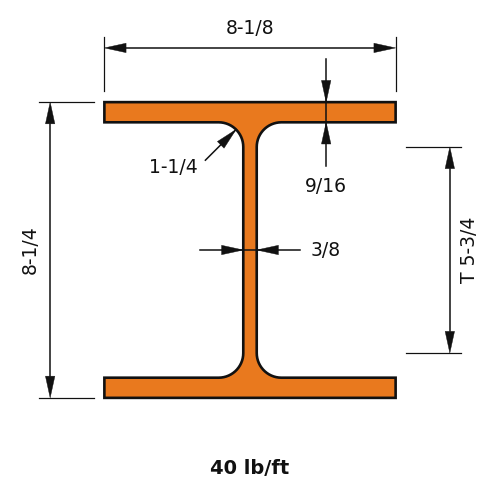

W8x40 is 8.25 in (210 mm) deep with an 8.07 in (205 mm) wide flange, and weighs 40 lb/ft (59.5 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)40.0
Depth of Section (in)8.25
Width of Section (in)8.07
Web Thickness (in)0.36
Flange Thickness (in)0.56
Kdet Dimension (in)1.25
T Dimension (in)5.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)146
Zx (in³)39.8
Sx (in³)35.5
rx (in)3.53
Iy (in⁴)49.1
Zy (in³)18.5
Sy (in³)12.2
ry (in)2.04
J (in⁴)1.12
Cw (in⁶)726
rts (in)2.31
ho (in)7.69

Full sortable table: Section properties table for this family
