W8x48 – W Shapes - American wide flange beams

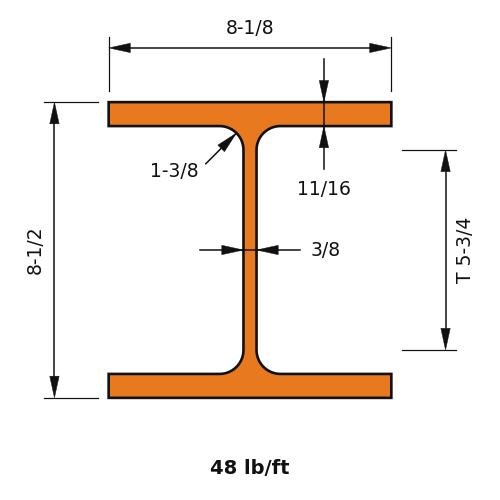

W8x48 is 8.5 in (216 mm) deep with an 8.11 in (206 mm) wide flange, and weighs 48 lb/ft (71.4 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)48.0
Depth of Section (in)8.5
Width of Section (in)8.11
Web Thickness (in)0.4
Flange Thickness (in)0.685
Kdet Dimension (in)1.375
T Dimension (in)5.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)184
Zx (in³)49
Sx (in³)43.2
rx (in)3.61
Iy (in⁴)60.9
Zy (in³)22.9
Sy (in³)15
ry (in)2.08
J (in⁴)1.96
Cw (in⁶)931
rts (in)2.35
ho (in)7.82
