W8x67 – W Shapes - American wide flange beams

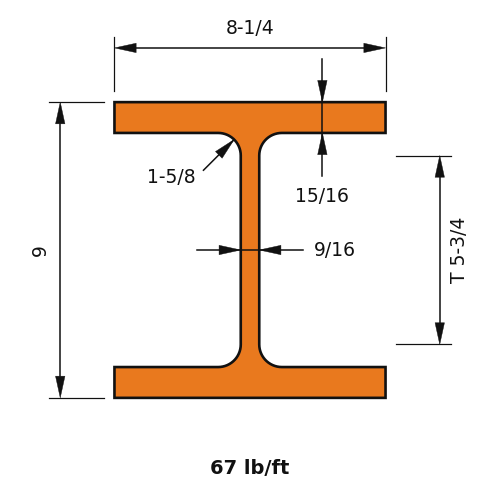

W8x67 is 9 in (229 mm) deep with an 8.28 in (210 mm) wide flange, and weighs 67 lb/ft (99.7 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)67.0
Depth of Section (in)9.0
Width of Section (in)8.28
Web Thickness (in)0.57
Flange Thickness (in)0.935
Kdet Dimension (in)1.625
T Dimension (in)5.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)272
Zx (in³)70.1
Sx (in³)60.4
rx (in)3.72
Iy (in⁴)88.6
Zy (in³)32.7
Sy (in³)21.4
ry (in)2.12
J (in⁴)5.05
Cw (in⁶)1440
rts (in)2.43
ho (in)8.07
