W10x12 – W Shapes - American wide flange beams

W10x12 is 9.87 in (251 mm) deep with a 3.96 in (101 mm) wide flange, and weighs 12 lb/ft (17.9 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

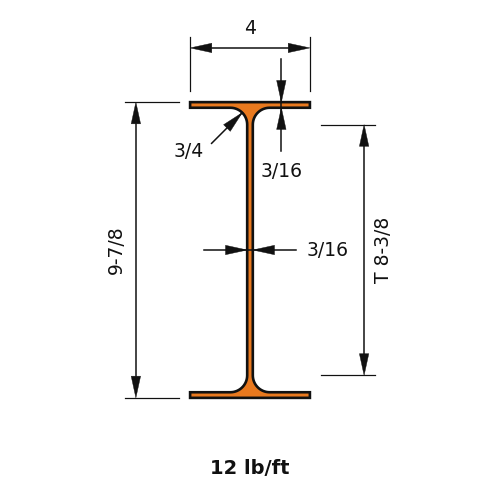

Dimensions

PropertyValue
Nominal Weight (lb/ft)12.0
Depth of Section (in)9.87
Width of Section (in)3.96
Web Thickness (in)0.19
Flange Thickness (in)0.21
Kdet Dimension (in)0.75
T Dimension (in)8.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)53.8
Zx (in³)12.6
Sx (in³)10.9
rx (in)3.9
Iy (in⁴)2.18
Zy (in³)1.74
Sy (in³)1.1
ry (in)0.785
J (in⁴)0.0547
Cw (in⁶)50.9
rts (in)0.983
ho (in)9.66
