W10x19 – W Shapes - American wide flange beams

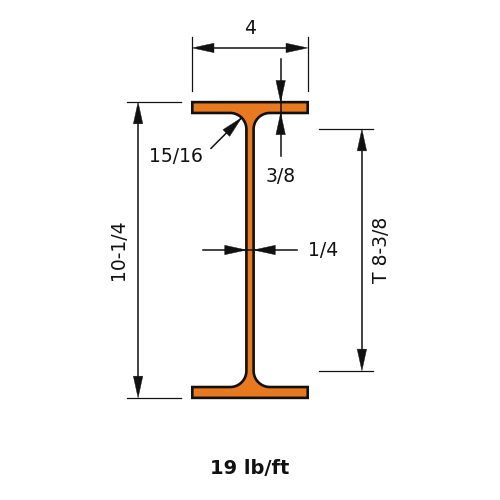

W10x19 is 10.2 in (259 mm) deep with a 4.02 in (102 mm) wide flange, and weighs 19 lb/ft (28.3 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)19.0
Depth of Section (in)10.2
Width of Section (in)4.02
Web Thickness (in)0.25
Flange Thickness (in)0.395
Kdet Dimension (in)0.9375
T Dimension (in)8.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)96.3
Zx (in³)21.6
Sx (in³)18.8
rx (in)4.14
Iy (in⁴)4.29
Zy (in³)3.35
Sy (in³)2.14
ry (in)0.874
J (in⁴)0.233
Cw (in⁶)104
rts (in)1.06
ho (in)9.81
