W10x22 – W Shapes - American wide flange beams

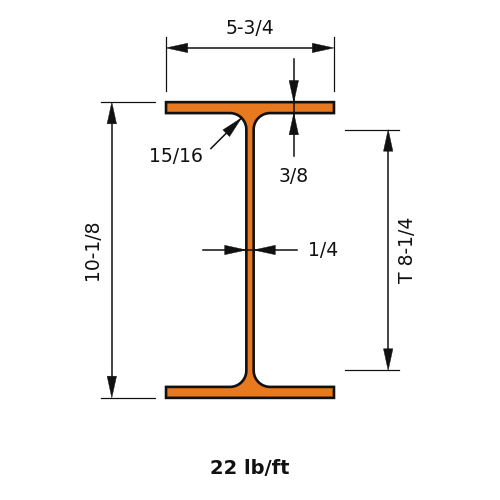

W10x22 is 10.2 in (259 mm) deep with a 5.75 in (146 mm) wide flange, and weighs 22 lb/ft (32.7 kg/m).
Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 22.0 |
| Depth of Section (in) | 10.2 |
| Width of Section (in) | 5.75 |
| Web Thickness (in) | 0.24 |
| Flange Thickness (in) | 0.36 |
| Kdet Dimension (in) | 0.9375 |
| T Dimension (in) | 8.25 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 118 |
| Zx (in³) | 26 |
| Sx (in³) | 23.2 |
| rx (in) | 4.27 |
| Iy (in⁴) | 11.4 |
| Zy (in³) | 6.1 |
| Sy (in³) | 3.97 |
| ry (in) | 1.33 |
| J (in⁴) | 0.239 |
| Cw (in⁶) | 275 |
| rts (in) | 1.55 |
| ho (in) | 9.84 |
Full sortable table: Section properties table for this family
