W12x35 – W Shapes - American wide flange beams

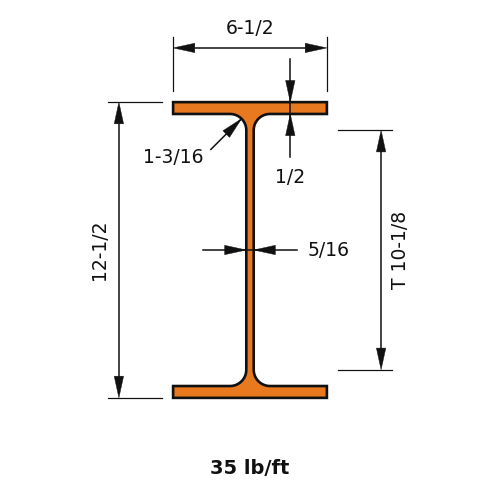

W12x35 is 12.5 in (318 mm) deep with a 6.56 in (167 mm) wide flange, and weighs 35 lb/ft (52.1 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)35.0
Depth of Section (in)12.5
Width of Section (in)6.56
Web Thickness (in)0.3
Flange Thickness (in)0.52
Kdet Dimension (in)1.1875
T Dimension (in)10.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)285
Zx (in³)51.2
Sx (in³)45.6
rx (in)5.25
Iy (in⁴)24.5
Zy (in³)11.5
Sy (in³)7.47
ry (in)1.54
J (in⁴)0.741
Cw (in⁶)879
rts (in)1.79
ho (in)12

Full sortable table: Section properties table for this family
