W12x40 – W Shapes - American wide flange beams

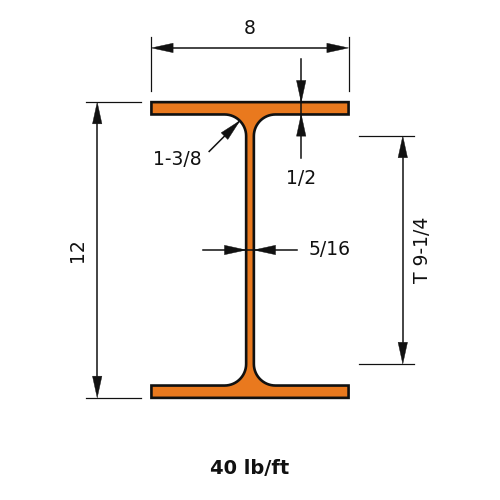

W12x40 is 11.9 in (302 mm) deep with an 8.01 in (203 mm) wide flange, and weighs 40 lb/ft (59.5 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)40.0
Depth of Section (in)11.9
Width of Section (in)8.01
Web Thickness (in)0.295
Flange Thickness (in)0.515
Kdet Dimension (in)1.375
T Dimension (in)9.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)307
Zx (in³)57
Sx (in³)51.5
rx (in)5.13
Iy (in⁴)44.1
Zy (in³)16.8
Sy (in³)11
ry (in)1.94
J (in⁴)0.906
Cw (in⁶)1440
rts (in)2.21
ho (in)11.4

Full sortable table: Section properties table for this family
