W12x106 – W Shapes - American wide flange beams

W12x106 is 12.9 in (328 mm) deep with a 12.2 in (310 mm) wide flange, and weighs 106 lb/ft (157.7 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

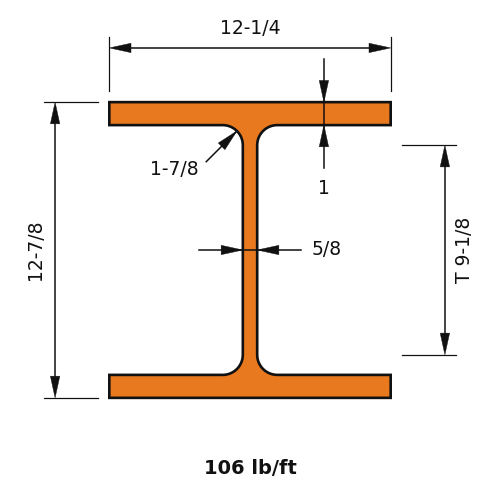

Dimensions

PropertyValue
Nominal Weight (lb/ft)106.0
Depth of Section (in)12.9
Width of Section (in)12.2
Web Thickness (in)0.61
Flange Thickness (in)0.99
Kdet Dimension (in)1.875
T Dimension (in)9.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)933
Zx (in³)164
Sx (in³)145
rx (in)5.47
Iy (in⁴)301
Zy (in³)75.1
Sy (in³)49.3
ry (in)3.11
J (in⁴)9.13
Cw (in⁶)10700
rts (in)3.52
ho (in)11.9
