W12x120 – W Shapes - American wide flange beams

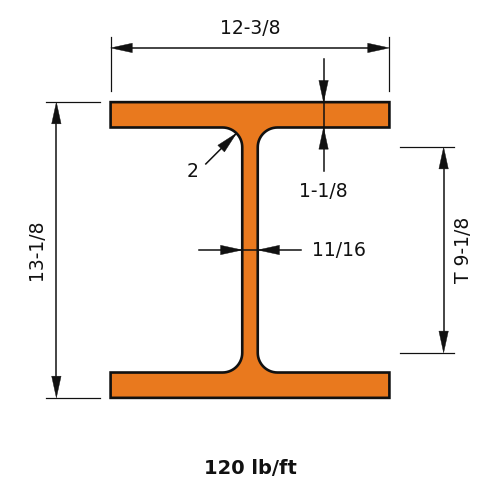

W12x120 is 13.1 in (333 mm) deep with a 12.3 in (312 mm) wide flange, and weighs 120 lb/ft (178.6 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)120.0
Depth of Section (in)13.1
Width of Section (in)12.3
Web Thickness (in)0.71
Flange Thickness (in)1.11
Kdet Dimension (in)2.0
T Dimension (in)9.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1070
Zx (in³)186
Sx (in³)163
rx (in)5.51
Iy (in⁴)345
Zy (in³)85.4
Sy (in³)56
ry (in)3.13
J (in⁴)12.9
Cw (in⁶)12400
rts (in)3.56
ho (in)12

Full sortable table: Section properties table for this family
