W14x38 – W Shapes - American wide flange beams

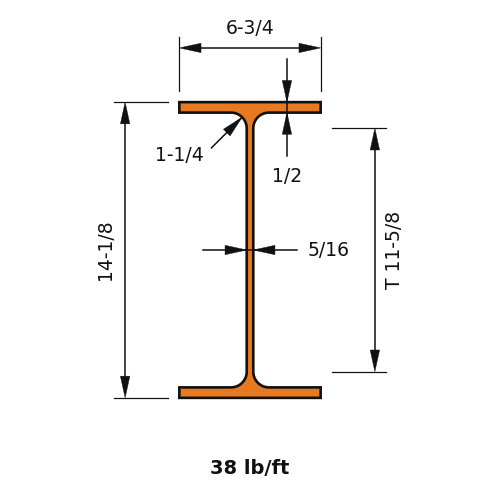

W14x38 is 14.1 in (358 mm) deep with a 6.77 in (172 mm) wide flange, and weighs 38 lb/ft (56.6 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)38.0
Depth of Section (in)14.1
Width of Section (in)6.77
Web Thickness (in)0.31
Flange Thickness (in)0.515
Kdet Dimension (in)1.25
T Dimension (in)11.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)385
Zx (in³)61.5
Sx (in³)54.6
rx (in)5.87
Iy (in⁴)26.7
Zy (in³)12.1
Sy (in³)7.88
ry (in)1.55
J (in⁴)0.798
Cw (in⁶)1230
rts (in)1.82
ho (in)13.6

Full sortable table: Section properties table for this family
