W14x43 – W Shapes - American wide flange beams

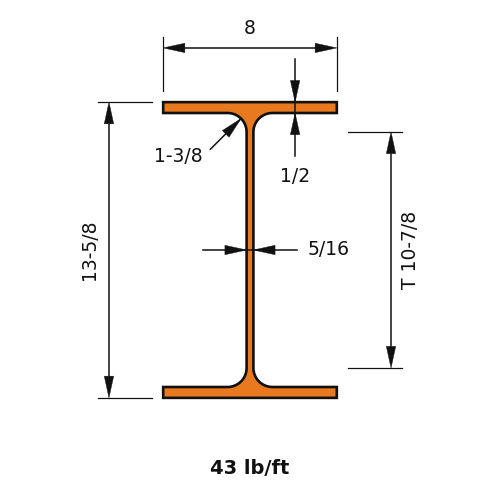

W14x43 is 13.7 in (348 mm) deep with an 8 in (203 mm) wide flange, and weighs 43 lb/ft (64.0 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)43.0
Depth of Section (in)13.7
Width of Section (in)8.0
Web Thickness (in)0.305
Flange Thickness (in)0.53
Kdet Dimension (in)1.375
T Dimension (in)10.875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)428
Zx (in³)69.6
Sx (in³)62.6
rx (in)5.82
Iy (in⁴)45.2
Zy (in³)17.3
Sy (in³)11.3
ry (in)1.89
J (in⁴)1.05
Cw (in⁶)1950
rts (in)2.18
ho (in)13.2

Full sortable table: Section properties table for this family
