W14x68 – W Shapes - American wide flange beams

W14x68 is 14 in (356 mm) deep with a 10 in (254 mm) wide flange, and weighs 68 lb/ft (101.2 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

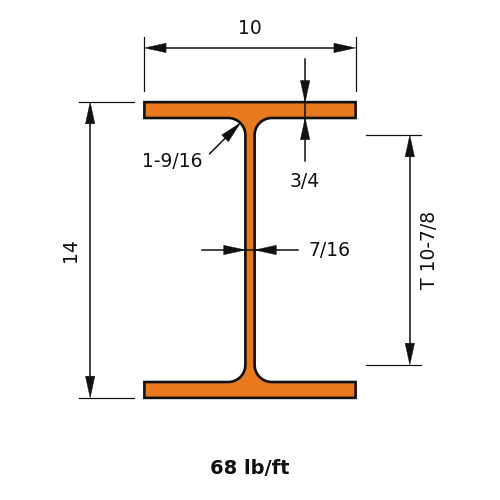

Dimensions

PropertyValue
Nominal Weight (lb/ft)68.0
Depth of Section (in)14.0
Width of Section (in)10.0
Web Thickness (in)0.415
Flange Thickness (in)0.72
Kdet Dimension (in)1.5625
T Dimension (in)10.875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)722
Zx (in³)115
Sx (in³)103
rx (in)6.01
Iy (in⁴)121
Zy (in³)36.9
Sy (in³)24.2
ry (in)2.46
J (in⁴)3.01
Cw (in⁶)5380
rts (in)2.8
ho (in)13.3

Full sortable table: Section properties table for this family
