W14x74 – W Shapes - American wide flange beams

W14x74 is 14.2 in (361 mm) deep with a 10.1 in (257 mm) wide flange, and weighs 74 lb/ft (110.1 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

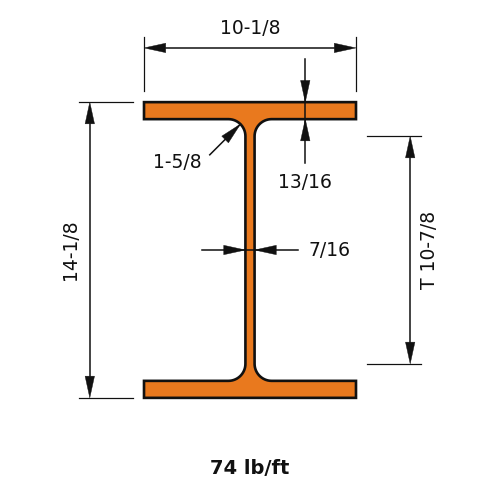

Dimensions

PropertyValue
Nominal Weight (lb/ft)74.0
Depth of Section (in)14.2
Width of Section (in)10.1
Web Thickness (in)0.45
Flange Thickness (in)0.785
Kdet Dimension (in)1.625
T Dimension (in)10.875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)795
Zx (in³)126
Sx (in³)112
rx (in)6.04
Iy (in⁴)134
Zy (in³)40.5
Sy (in³)26.6
ry (in)2.48
J (in⁴)3.87
Cw (in⁶)5990
rts (in)2.83
ho (in)13.4

Full sortable table: Section properties table for this family
