W14x145 – W Shapes - American wide flange beams

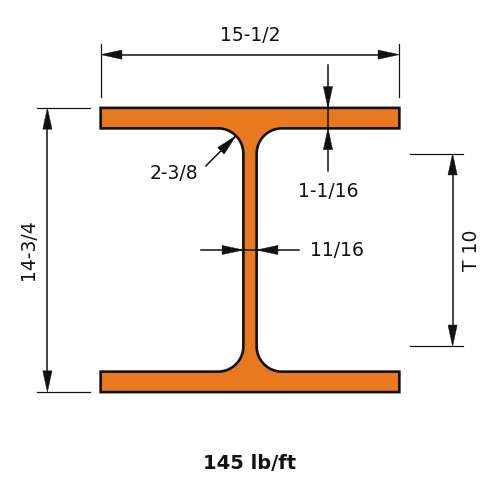

W14x145 is 14.8 in (376 mm) deep with a 15.5 in (394 mm) wide flange, and weighs 145 lb/ft (215.8 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)145.0
Depth of Section (in)14.8
Width of Section (in)15.5
Web Thickness (in)0.68
Flange Thickness (in)1.09
Kdet Dimension (in)2.375
T Dimension (in)10.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1710
Zx (in³)260
Sx (in³)232
rx (in)6.33
Iy (in⁴)677
Zy (in³)133
Sy (in³)87.3
ry (in)3.98
J (in⁴)15.2
Cw (in⁶)31700
rts (in)4.47
ho (in)13.7

Full sortable table: Section properties table for this family
