W14x159 – W Shapes - American wide flange beams

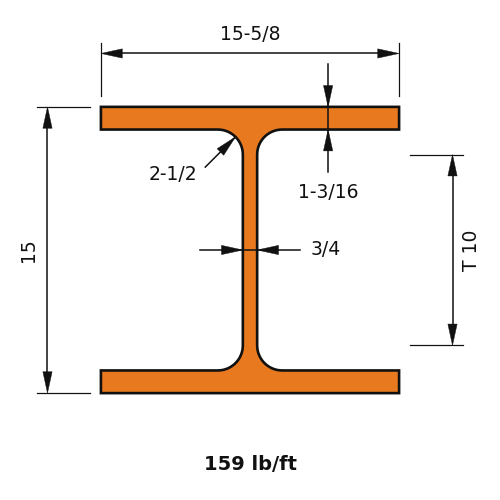

W14x159 is 15 in (381 mm) deep with a 15.6 in (396 mm) wide flange, and weighs 159 lb/ft (236.6 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)159.0
Depth of Section (in)15.0
Width of Section (in)15.6
Web Thickness (in)0.745
Flange Thickness (in)1.19
Kdet Dimension (in)2.5
T Dimension (in)10.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1900
Zx (in³)287
Sx (in³)254
rx (in)6.38
Iy (in⁴)748
Zy (in³)146
Sy (in³)96.2
ry (in)4
J (in⁴)19.7
Cw (in⁶)35600
rts (in)4.51
ho (in)13.8

Full sortable table: Section properties table for this family
