W14x193 – W Shapes - American wide flange beams

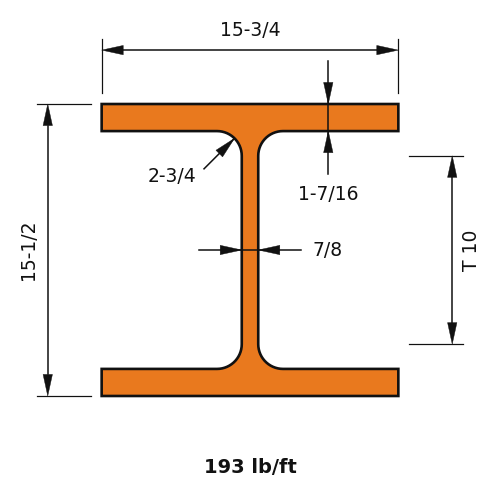

W14x193 is 15.5 in (394 mm) deep with a 15.7 in (399 mm) wide flange, and weighs 193 lb/ft (287.2 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)193.0
Depth of Section (in)15.5
Width of Section (in)15.7
Web Thickness (in)0.89
Flange Thickness (in)1.44
Kdet Dimension (in)2.75
T Dimension (in)10.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)2400
Zx (in³)355
Sx (in³)310
rx (in)6.5
Iy (in⁴)931
Zy (in³)180
Sy (in³)119
ry (in)4.05
J (in⁴)34.8
Cw (in⁶)45900
rts (in)4.59
ho (in)14.1

Full sortable table: Section properties table for this family
