W14x211 – W Shapes - American wide flange beams

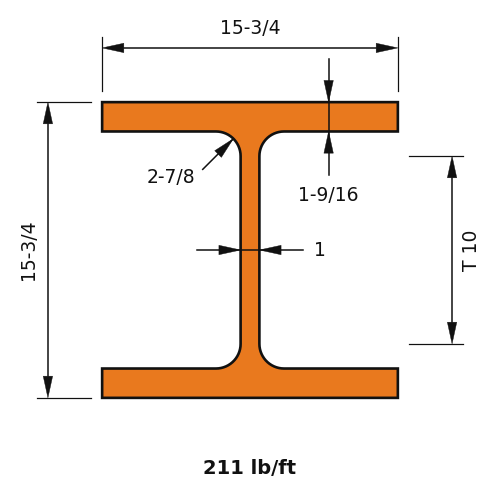

W14x211 is 15.7 in (399 mm) deep with a 15.8 in (401 mm) wide flange, and weighs 211 lb/ft (314.0 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)211.0
Depth of Section (in)15.7
Width of Section (in)15.8
Web Thickness (in)0.98
Flange Thickness (in)1.56
Kdet Dimension (in)2.875
T Dimension (in)10.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)2660
Zx (in³)390
Sx (in³)338
rx (in)6.55
Iy (in⁴)1030
Zy (in³)198
Sy (in³)130
ry (in)4.07
J (in⁴)44.6
Cw (in⁶)51500
rts (in)4.64
ho (in)14.1
