W18x50 – W Shapes - American wide flange beams

W18x50 is 18 in (457 mm) deep with a 7.5 in (191 mm) wide flange, and weighs 50 lb/ft (74.4 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

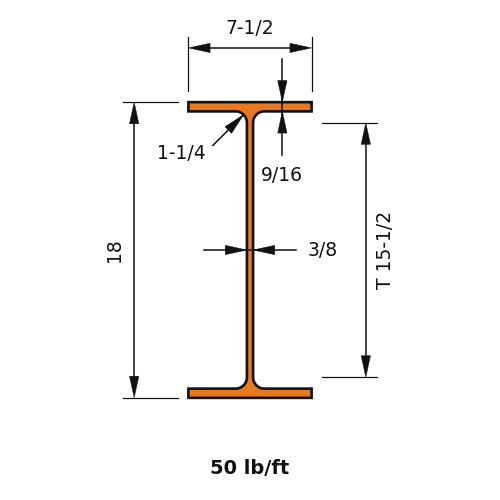

Dimensions

PropertyValue
Nominal Weight (lb/ft)50.0
Depth of Section (in)18.0
Width of Section (in)7.5
Web Thickness (in)0.355
Flange Thickness (in)0.57
Kdet Dimension (in)1.25
T Dimension (in)15.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)800
Zx (in³)101
Sx (in³)88.9
rx (in)7.38
Iy (in⁴)40.1
Zy (in³)16.6
Sy (in³)10.7
ry (in)1.65
J (in⁴)1.24
Cw (in⁶)3040
rts (in)1.98
ho (in)17.4

Full sortable table: Section properties table for this family
