W18x86 – W Shapes - American wide flange beams

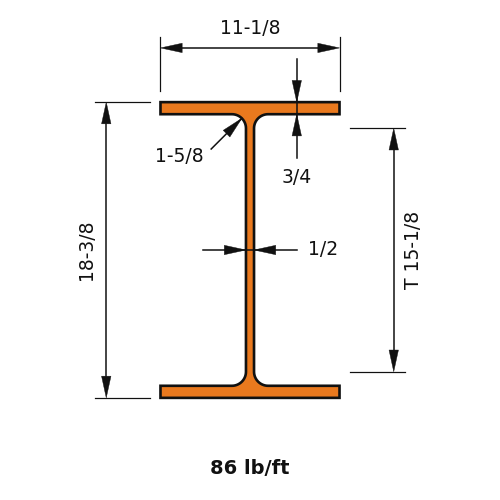

W18x86 is 18.4 in (467 mm) deep with an 11.1 in (282 mm) wide flange, and weighs 86 lb/ft (128.0 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)86.0
Depth of Section (in)18.4
Width of Section (in)11.1
Web Thickness (in)0.48
Flange Thickness (in)0.77
Kdet Dimension (in)1.625
T Dimension (in)15.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1530
Zx (in³)186
Sx (in³)166
rx (in)7.77
Iy (in⁴)175
Zy (in³)48.4
Sy (in³)31.6
ry (in)2.63
J (in⁴)4.1
Cw (in⁶)13600
rts (in)3.05
ho (in)17.6

Full sortable table: Section properties table for this family
