W18x119 – W Shapes - American wide flange beams

W18x119 is 19 in (483 mm) deep with an 11.3 in (287 mm) wide flange, and weighs 119 lb/ft (177.1 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

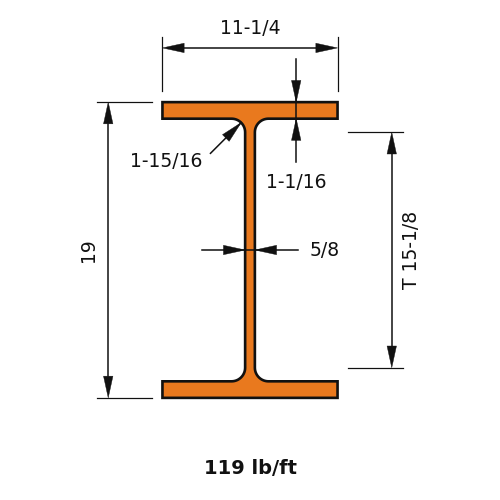

Dimensions

PropertyValue
Nominal Weight (lb/ft)119.0
Depth of Section (in)19.0
Width of Section (in)11.3
Web Thickness (in)0.655
Flange Thickness (in)1.06
Kdet Dimension (in)1.9375
T Dimension (in)15.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)2190
Zx (in³)262
Sx (in³)231
rx (in)7.9
Iy (in⁴)253
Zy (in³)69.1
Sy (in³)44.9
ry (in)2.69
J (in⁴)10.6
Cw (in⁶)20300
rts (in)3.13
ho (in)17.9

Full sortable table: Section properties table for this family
