W18x258 – W Shapes - American wide flange beams

W18x258 is 21.5 in (546 mm) deep with an 11.8 in (300 mm) wide flange, and weighs 258 lb/ft (383.9 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

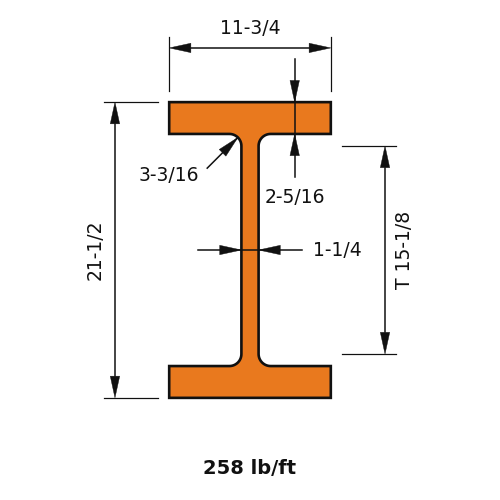

Dimensions

PropertyValue
Nominal Weight (lb/ft)258.0
Depth of Section (in)21.5
Width of Section (in)11.8
Web Thickness (in)1.28
Flange Thickness (in)2.3
Kdet Dimension (in)3.1875
T Dimension (in)15.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)5510
Zx (in³)611
Sx (in³)514
rx (in)8.53
Iy (in⁴)628
Zy (in³)166
Sy (in³)107
ry (in)2.88
J (in⁴)103
Cw (in⁶)57600
rts (in)3.42
ho (in)19.2
