W21x73 – W Shapes - American wide flange beams

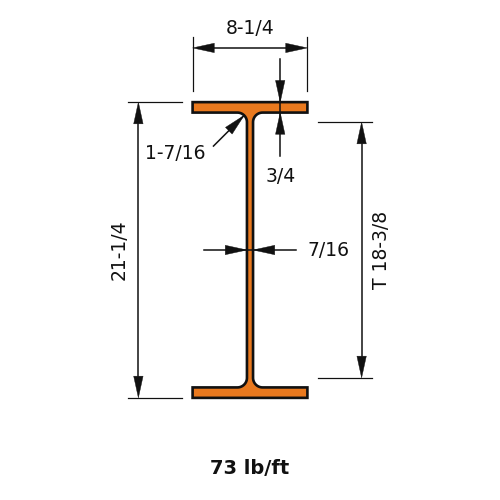

W21x73 is 21.2 in (538 mm) deep with an 8.3 in (211 mm) wide flange, and weighs 73 lb/ft (108.6 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)73.0
Depth of Section (in)21.2
Width of Section (in)8.3
Web Thickness (in)0.455
Flange Thickness (in)0.74
Kdet Dimension (in)1.4375
T Dimension (in)18.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1600
Zx (in³)172
Sx (in³)151
rx (in)8.64
Iy (in⁴)70.6
Zy (in³)26.6
Sy (in³)17
ry (in)1.81
J (in⁴)3.02
Cw (in⁶)7410
rts (in)2.19
ho (in)20.5
