W21x93 – W Shapes - American wide flange beams

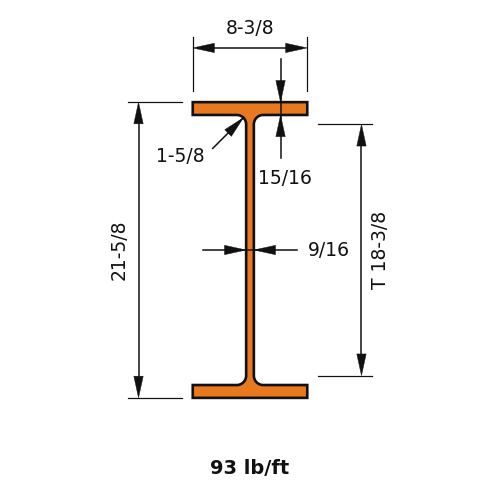

W21x93 is 21.6 in (549 mm) deep with an 8.42 in (214 mm) wide flange, and weighs 93 lb/ft (138.4 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)93.0
Depth of Section (in)21.6
Width of Section (in)8.42
Web Thickness (in)0.58
Flange Thickness (in)0.93
Kdet Dimension (in)1.625
T Dimension (in)18.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)2070
Zx (in³)221
Sx (in³)192
rx (in)8.7
Iy (in⁴)92.9
Zy (in³)34.7
Sy (in³)22.1
ry (in)1.84
J (in⁴)6.03
Cw (in⁶)9940
rts (in)2.24
ho (in)20.7

Full sortable table: Section properties table for this family
