W24x117 – W Shapes - American wide flange beams

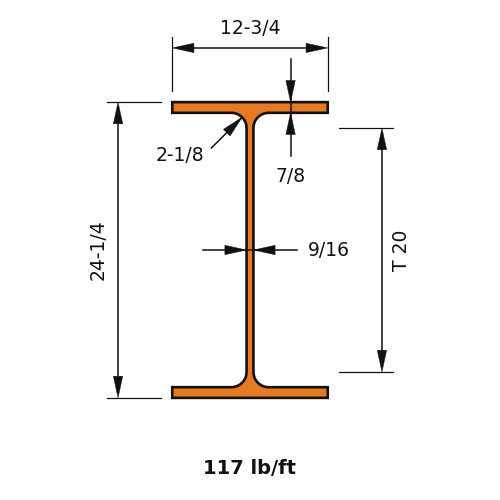

W24x117 is 24.3 in (617 mm) deep with a 12.8 in (325 mm) wide flange, and weighs 117 lb/ft (174.1 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)117.0
Depth of Section (in)24.3
Width of Section (in)12.8
Web Thickness (in)0.55
Flange Thickness (in)0.85
Kdet Dimension (in)2.125
T Dimension (in)20.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)3540
Zx (in³)327
Sx (in³)291
rx (in)10.1
Iy (in⁴)297
Zy (in³)71.4
Sy (in³)46.5
ry (in)2.94
J (in⁴)6.72
Cw (in⁶)40800
rts (in)3.46
ho (in)23.5

Full sortable table: Section properties table for this family
