W24x207 – W Shapes - American wide flange beams

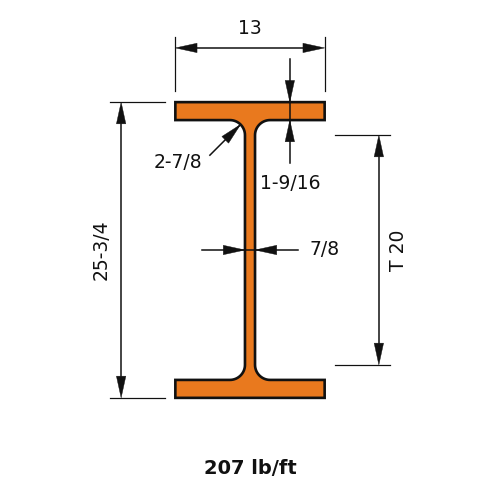

W24x207 is 25.7 in (653 mm) deep with a 13 in (330 mm) wide flange, and weighs 207 lb/ft (308.0 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)207.0
Depth of Section (in)25.7
Width of Section (in)13.0
Web Thickness (in)0.87
Flange Thickness (in)1.57
Kdet Dimension (in)2.875
T Dimension (in)20.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)6820
Zx (in³)606
Sx (in³)531
rx (in)10.6
Iy (in⁴)578
Zy (in³)137
Sy (in³)88.8
ry (in)3.08
J (in⁴)38.3
Cw (in⁶)84100
rts (in)3.62
ho (in)24.1

Full sortable table: Section properties table for this family
