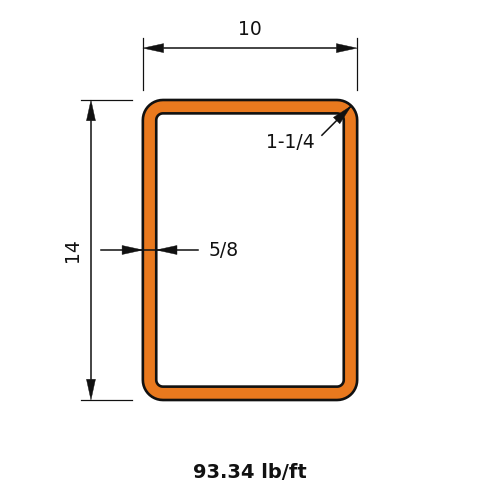

HSS Shapes - Rectangular - HSS14x10x.625

Rectangular HSS (Hollow Structural Sections) are closed, tube-shaped sections formed into a rectangular profile. Their closed shape gives them excellent torsional stiffness, while the unequal depth and width let you put the greater stiffness where the loading needs it. That makes rectangular HSS a common choice for beams and girts, canopy and entrance framing, architecturally exposed steelwork, and any framing where a clean closed profile and a strong axis are both required.

Dimensions

PropertyValue
Nominal Weight93.34
Depth of Section14.0
Depth of Flat Wall12.3
Width of Section10.0
Width of Flat Wall8.26
Nominal Thickness0.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix687
Zx120
Sx98.2
rx5.17
Iy407
Zy95.1
Sy81.5
ry3.98
J832
C146

Full sortable table: Section properties table for this family
