W30x173 – W Shapes - American wide flange beams

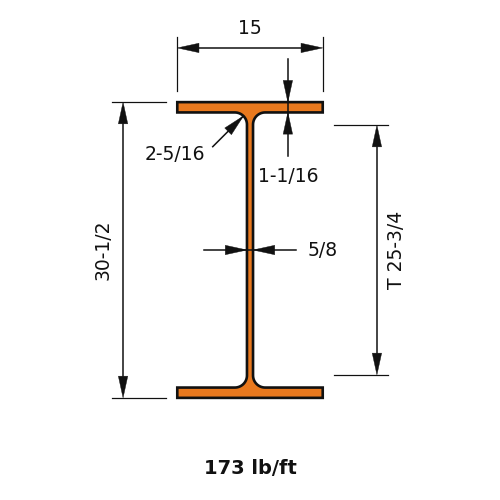

W30x173 is 30.4 in (772 mm) deep with a 15 in (381 mm) wide flange, and weighs 173 lb/ft (257.5 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)173.0
Depth of Section (in)30.4
Width of Section (in)15.0
Web Thickness (in)0.655
Flange Thickness (in)1.07
Kdet Dimension (in)2.3125
T Dimension (in)25.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)8230
Zx (in³)607
Sx (in³)541
rx (in)12.7
Iy (in⁴)598
Zy (in³)123
Sy (in³)79.8
ry (in)3.42
J (in⁴)15.6
Cw (in⁶)129000
rts (in)4.03
ho (in)29.3

Full sortable table: Section properties table for this family
