W30x211 – W Shapes - American wide flange beams

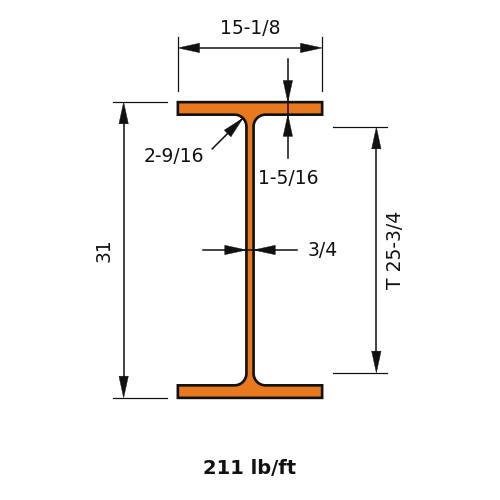

W30x211 is 30.9 in (785 mm) deep with a 15.1 in (384 mm) wide flange, and weighs 211 lb/ft (314.0 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)211.0
Depth of Section (in)30.9
Width of Section (in)15.1
Web Thickness (in)0.775
Flange Thickness (in)1.32
Kdet Dimension (in)2.5625
T Dimension (in)25.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)10300
Zx (in³)751
Sx (in³)665
rx (in)12.9
Iy (in⁴)757
Zy (in³)155
Sy (in³)100
ry (in)3.49
J (in⁴)28.4
Cw (in⁶)166000
rts (in)4.11
ho (in)29.6
