W40x149 – W Shapes - American wide flange beams

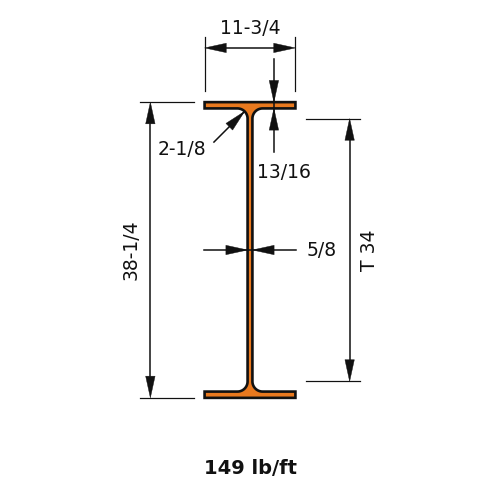

W40x149 is 38.2 in (970 mm) deep with an 11.8 in (300 mm) wide flange, and weighs 149 lb/ft (221.7 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)149.0
Depth of Section (in)38.2
Width of Section (in)11.8
Web Thickness (in)0.63
Flange Thickness (in)0.83
Kdet Dimension (in)2.125
T Dimension (in)34.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)9800
Zx (in³)598
Sx (in³)513
rx (in)15
Iy (in⁴)229
Zy (in³)62.2
Sy (in³)38.8
ry (in)2.29
J (in⁴)9.36
Cw (in⁶)80000
rts (in)2.89
ho (in)37.4
