W40x327 – W Shapes - American wide flange beams

W40x327 is 40.8 in (1036 mm) deep with a 12.1 in (307 mm) wide flange, and weighs 327 lb/ft (486.6 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

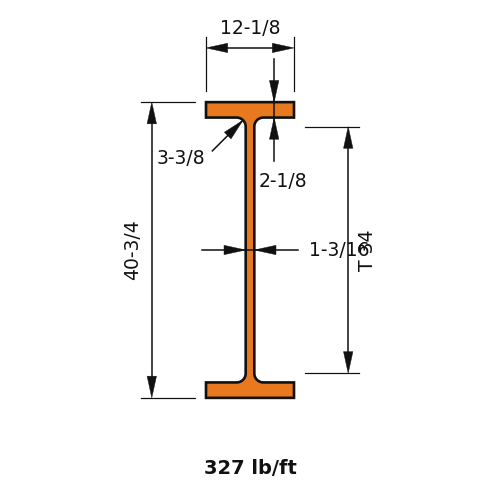

Dimensions

PropertyValue
Nominal Weight (lb/ft)327.0
Depth of Section (in)40.8
Width of Section (in)12.1
Web Thickness (in)1.18
Flange Thickness (in)2.13
Kdet Dimension (in)3.375
T Dimension (in)34.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)24500
Zx (in³)1410
Sx (in³)1200
rx (in)16
Iy (in⁴)640
Zy (in³)170
Sy (in³)105
ry (in)2.58
J (in⁴)103
Cw (in⁶)239000
rts (in)3.21
ho (in)38.7
