W40x199 – W Shapes - American wide flange beams

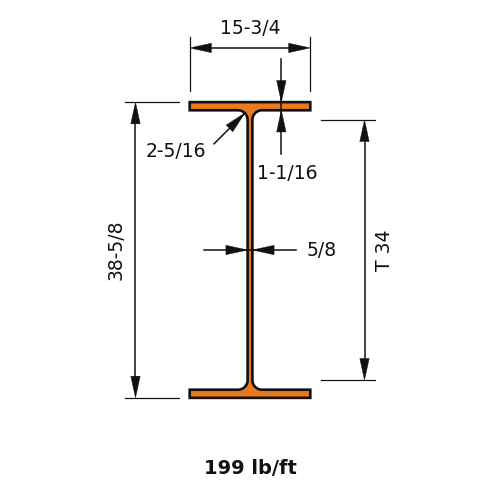

W40x199 is 38.7 in (983 mm) deep with a 15.8 in (401 mm) wide flange, and weighs 199 lb/ft (296.1 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)199.0
Depth of Section (in)38.7
Width of Section (in)15.8
Web Thickness (in)0.65
Flange Thickness (in)1.07
Kdet Dimension (in)2.3125
T Dimension (in)34.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)14900
Zx (in³)869
Sx (in³)770
rx (in)16
Iy (in⁴)695
Zy (in³)137
Sy (in³)88.2
ry (in)3.45
J (in⁴)18.3
Cw (in⁶)246000
rts (in)4.12
ho (in)37.6
