W40x297 – W Shapes - American wide flange beams

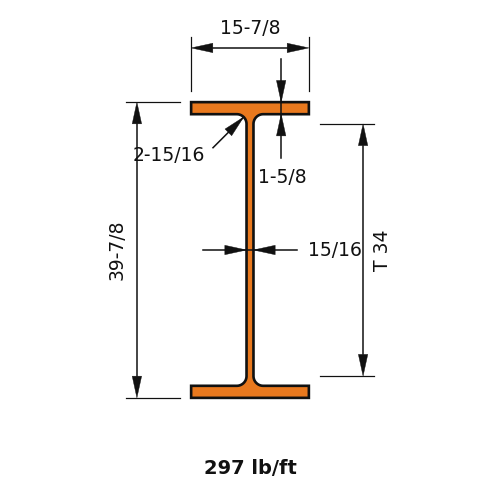

W40x297 is 39.8 in (1011 mm) deep with a 15.8 in (401 mm) wide flange, and weighs 297 lb/ft (442.0 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)297.0
Depth of Section (in)39.8
Width of Section (in)15.8
Web Thickness (in)0.93
Flange Thickness (in)1.65
Kdet Dimension (in)2.9375
T Dimension (in)34.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)23200
Zx (in³)1330
Sx (in³)1170
rx (in)16.3
Iy (in⁴)1090
Zy (in³)215
Sy (in³)138
ry (in)3.54
J (in⁴)61.2
Cw (in⁶)399000
rts (in)4.22
ho (in)38.2

Full sortable table: Section properties table for this family
