W40x372 – W Shapes - American wide flange beams

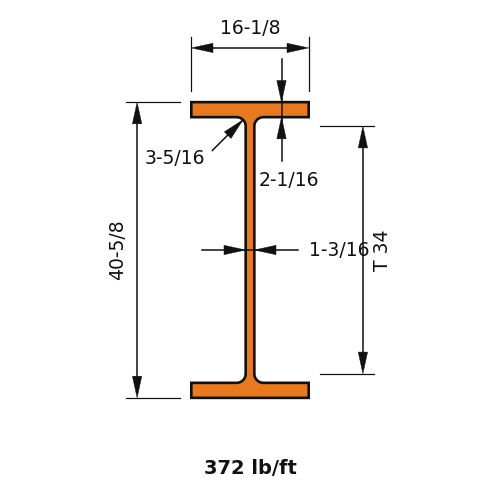

W40x372 is 40.6 in (1031 mm) deep with a 16.1 in (409 mm) wide flange, and weighs 372 lb/ft (553.6 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)372.0
Depth of Section (in)40.6
Width of Section (in)16.1
Web Thickness (in)1.16
Flange Thickness (in)2.05
Kdet Dimension (in)3.3125
T Dimension (in)34.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)29600
Zx (in³)1680
Sx (in³)1460
rx (in)16.5
Iy (in⁴)1420
Zy (in³)277
Sy (in³)177
ry (in)3.6
J (in⁴)116
Cw (in⁶)528000
rts (in)4.33
ho (in)38.6
