W44x290 – W Shapes - American wide flange beams

W44x290 is 43.6 in (1107 mm) deep with a 15.8 in (401 mm) wide flange, and weighs 290 lb/ft (431.6 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

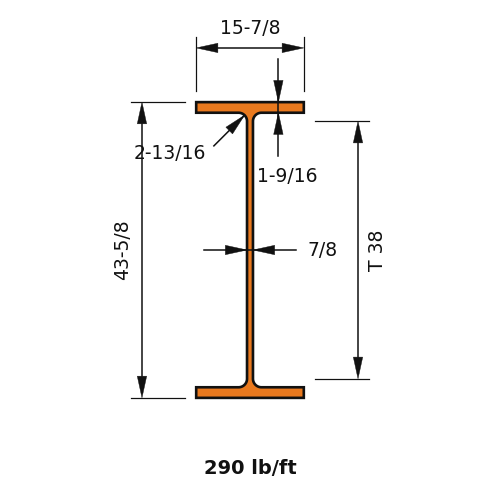

Dimensions

PropertyValue
Nominal Weight (lb/ft)290.0
Depth of Section (in)43.6
Width of Section (in)15.8
Web Thickness (in)0.865
Flange Thickness (in)1.58
Kdet Dimension (in)2.8125
T Dimension (in)38.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)27000
Zx (in³)1410
Sx (in³)1240
rx (in)17.8
Iy (in⁴)1040
Zy (in³)205
Sy (in³)132
ry (in)3.49
J (in⁴)50.9
Cw (in⁶)461000
rts (in)4.2
ho (in)42
