MC Shapes - American channels - MC6x6.5
MC shapes are additional standardized channel sections that sit outside the C-shape series — extra depth and weight combinations that fill gaps the standard C series doesn't cover. They're used the same way C shapes are — framing, bracing, purlins, and general structural channel applications — and are typically specified when a project's loading or geometry calls for a specific depth-to-weight combination that only the MC series provides.
Nearby Sections

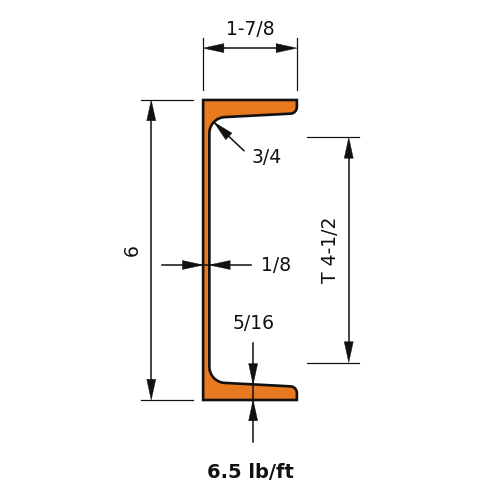

Dimensions
| Property | Value |
|---|---|
| Nominal Weight | 6.5 |
| Depth of Section | 6.0 |
| Width of Section | 1.85 |
| Web Thickness | 0.155 |
| Flange Thickness | 0.291 |
| Kdet Dimension | 0.75 |
| T Dimension | 4.5 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix | 11 |
| Zx | 4.28 |
| Sx | 3.66 |
| rx | 2.38 |
| Iy | 0.565 |
| Zy | 0.836 |
| Sy | 0.422 |
| ry | 0.539 |
| J | 0.0412 |
| Cw | 3.75 |
| ro | 2.68 |
| H | 0.824 |
| rts | 0.631 |
| ho | 5.71 |
Full sortable table: Section properties table for this family
