MC Shapes - American channels - MC10x6.5
MC shapes are additional standardized channel sections that sit outside the C-shape series — extra depth and weight combinations that fill gaps the standard C series doesn't cover. They're used the same way C shapes are — framing, bracing, purlins, and general structural channel applications — and are typically specified when a project's loading or geometry calls for a specific depth-to-weight combination that only the MC series provides.
Nearby Sections

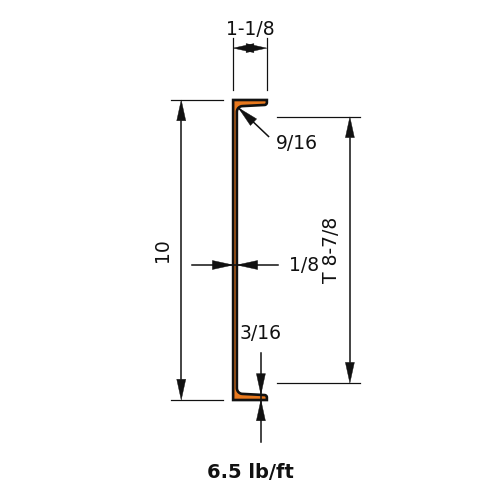

Dimensions
| Property | Value |
|---|---|
| Nominal Weight | 6.5 |
| Depth of Section | 10.0 |
| Width of Section | 1.17 |
| Web Thickness | 0.152 |
| Flange Thickness | 0.202 |
| Kdet Dimension | 0.5625 |
| T Dimension | 8.875 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix | 22.9 |
| Zx | 5.9 |
| Sx | 4.59 |
| rx | 3.43 |
| Iy | 0.133 |
| Zy | 0.284 |
| Sy | 0.137 |
| ry | 0.262 |
| J | 0.0191 |
| Cw | 2.76 |
| ro | 3.46 |
| H | 0.988 |
| rts | 0.363 |
| ho | 9.8 |
Full sortable table: Section properties table for this family
