MC Shapes - American channels - MC10x33.6
MC shapes are additional standardized channel sections that sit outside the C-shape series — extra depth and weight combinations that fill gaps the standard C series doesn't cover. They're used the same way C shapes are — framing, bracing, purlins, and general structural channel applications — and are typically specified when a project's loading or geometry calls for a specific depth-to-weight combination that only the MC series provides.
Nearby Sections

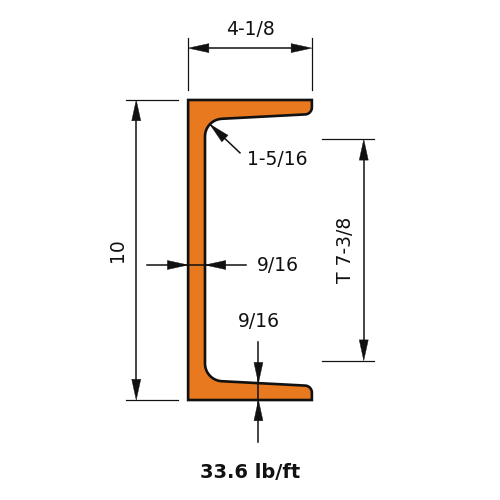

Dimensions
| Property | Value |
|---|---|
| Nominal Weight | 33.6 |
| Depth of Section | 10.0 |
| Width of Section | 4.1 |
| Web Thickness | 0.575 |
| Flange Thickness | 0.575 |
| Kdet Dimension | 1.3125 |
| T Dimension | 7.375 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix | 139 |
| Zx | 33.7 |
| Sx | 27.8 |
| rx | 3.75 |
| Iy | 13.1 |
| Zy | 8.28 |
| Sy | 4.35 |
| ry | 1.15 |
| J | 1.2 |
| Cw | 224 |
| ro | 4.47 |
| H | 0.77 |
| rts | 1.4 |
| ho | 9.43 |
Full sortable table: Section properties table for this family
