MC Shapes - American channels - MC12x10.6
MC shapes are additional standardized channel sections that sit outside the C-shape series — extra depth and weight combinations that fill gaps the standard C series doesn't cover. They're used the same way C shapes are — framing, bracing, purlins, and general structural channel applications — and are typically specified when a project's loading or geometry calls for a specific depth-to-weight combination that only the MC series provides.
Nearby Sections

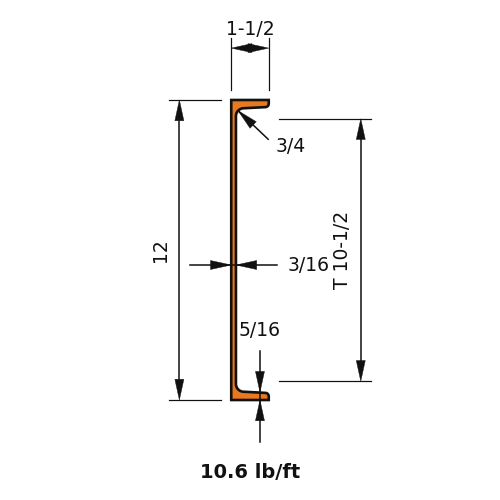

Dimensions
| Property | Value |
|---|---|
| Nominal Weight | 10.6 |
| Depth of Section | 12.0 |
| Width of Section | 1.5 |
| Web Thickness | 0.19 |
| Flange Thickness | 0.309 |
| Kdet Dimension | 0.75 |
| T Dimension | 10.5 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix | 55.3 |
| Zx | 11.6 |
| Sx | 9.22 |
| rx | 4.22 |
| Iy | 0.378 |
| Zy | 0.635 |
| Sy | 0.307 |
| ry | 0.349 |
| J | 0.0596 |
| Cw | 11.7 |
| ro | 4.27 |
| H | 0.983 |
| rts | 0.478 |
| ho | 11.7 |
Full sortable table: Section properties table for this family
