MC18x45.8 – MC Shapes - American channels

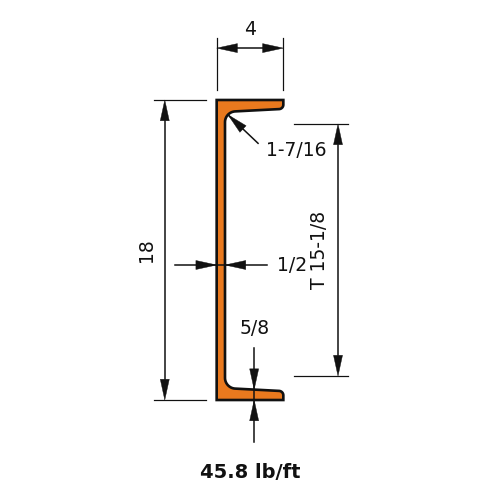

MC18x45.8 is a channel 18 in (457 mm) deep with a 4 in (102 mm) flange, weighing 45.8 lb/ft (68.2 kg/m).

MC shapes are additional standardized channel sections that sit outside the C-shape series — extra depth and weight combinations that fill gaps the standard C series doesn't cover. They're used the same way C shapes are — framing, bracing, purlins, and general structural channel applications — and are typically specified when a project's loading or geometry calls for a specific depth-to-weight combination that only the MC series provides.
