M Shapes - M12.5x12.4
M shapes are doubly-symmetric, I-shaped sections that fall outside the standard W and S weight/depth series — typically lighter and often smaller than the lightest available W shape at a comparable depth. They're specified for light-frame construction, secondary framing members, and miscellaneous structural applications where a full W-shape section would be heavier than the load actually requires. Because the M series fills gaps the W and S series don't cover, it's a useful option whenever a project needs an economical, lightweight I-shaped member — mezzanine framing, light equipment platforms, and similar low-load structural work.
Nearby Sections

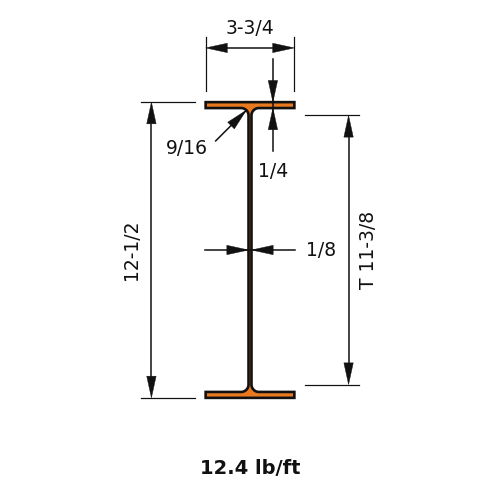

Dimensions
| Property | Value |
|---|---|
| Nominal Weight | 12.4 |
| Depth of Section | 12.5 |
| Width of Section | 3.75 |
| Web Thickness | 0.155 |
| Flange Thickness | 0.228 |
| Kdet Dimension | 0.5625 |
| T Dimension | 11.375 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix | 89.3 |
| Zx | 16.5 |
| Sx | 14.2 |
| rx | 4.96 |
| Iy | 2.01 |
| Zy | 1.68 |
| Sy | 1.07 |
| ry | 0.744 |
| J | 0.0493 |
| Cw | 76 |
| rts | 0.933 |
| ho | 12.3 |
Full sortable table: Section properties table for this family
