L3x2-1/2x1/2 (L3x2.5x.5) – L Shapes - Unequal Leg Angles

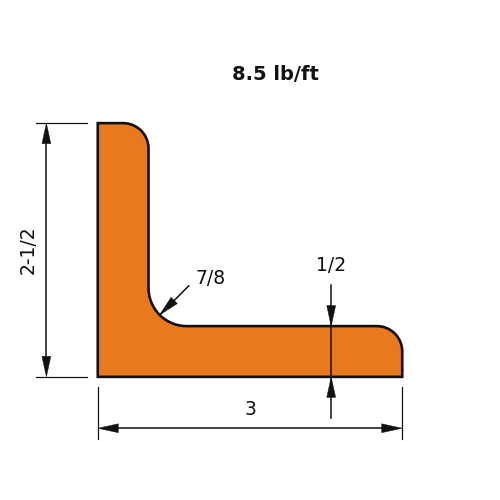

L3x2-1/2x1/2 is an unequal-leg angle with 3 in (76 mm) x 2.5 in (64 mm) legs, 1/2 in (13 mm) thick, weighing 8.5 lb/ft (12.6 kg/m).
Unequal leg angles have two legs of different sizes meeting at a right angle, which lets you place the longer leg where the span or connection needs it. They share the practical advantages of all angles: inexpensive, easy to cut, drill, bolt and weld, and useful wherever a structure needs bracing, a connection element or a lightweight framing member. The unequal geometry suits lintels over doors and windows, shelf angles, unequal-leg bracing, truss members and general fabrication work where one direction carries more load than the other.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 8.5 |
| Leg Size (in) | 2.5 |
| Leg Size (in) | 3.0 |
| Nominal Thickness (in) | 0.5 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 2.07 |
| Zx (in³) | 1.86 |
| Sx (in³) | 1.03 |
| rx (in) | 0.91 |
| Iy (in⁴) | 1.29 |
| Zy (in³) | 1.34 |
| Sy (in³) | 0.736 |
| ry (in) | 0.718 |
| Iz (in⁴) | 0.665 |
| rz (in) | 0.516 |
| Sz (in³) | 0.568 |
| J (in⁴) | 0.213 |
| Cw (in⁶) | 0.112 |
| ro (in) | 1.46 |
Full sortable table: Section properties table for this family
