L3-1/2x3x7/16 (L3.5x3x.4375) – L Shapes - Unequal Leg Angles

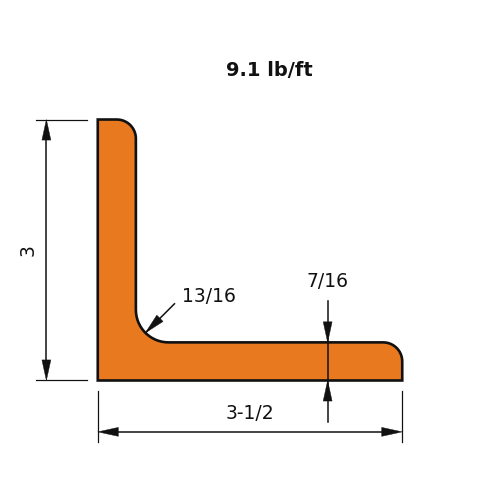

L3-1/2x3x7/16 is an unequal-leg angle with 3.5 in (89 mm) x 3 in (76 mm) legs, 7/16 in (11 mm) thick, weighing 9.1 lb/ft (13.5 kg/m).
Unequal leg angles have two legs of different sizes meeting at a right angle, which lets you place the longer leg where the span or connection needs it. They share the practical advantages of all angles: inexpensive, easy to cut, drill, bolt and weld, and useful wherever a structure needs bracing, a connection element or a lightweight framing member. The unequal geometry suits lintels over doors and windows, shelf angles, unequal-leg bracing, truss members and general fabrication work where one direction carries more load than the other.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 9.1 |
| Leg Size (in) | 3.0 |
| Leg Size (in) | 3.5 |
| Nominal Thickness (in) | 0.438 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 3.1 |
| Zx (in³) | 2.32 |
| Sx (in³) | 1.29 |
| rx (in) | 1.08 |
| Iy (in⁴) | 2.09 |
| Zy (in³) | 1.75 |
| Sy (in³) | 0.971 |
| ry (in) | 0.885 |
| Iz (in⁴) | 1.02 |
| rz (in) | 0.62 |
| Sz (in³) | 0.773 |
| J (in⁴) | 0.178 |
| Cw (in⁶) | 0.132 |
| ro (in) | 1.76 |
Full sortable table: Section properties table for this family
